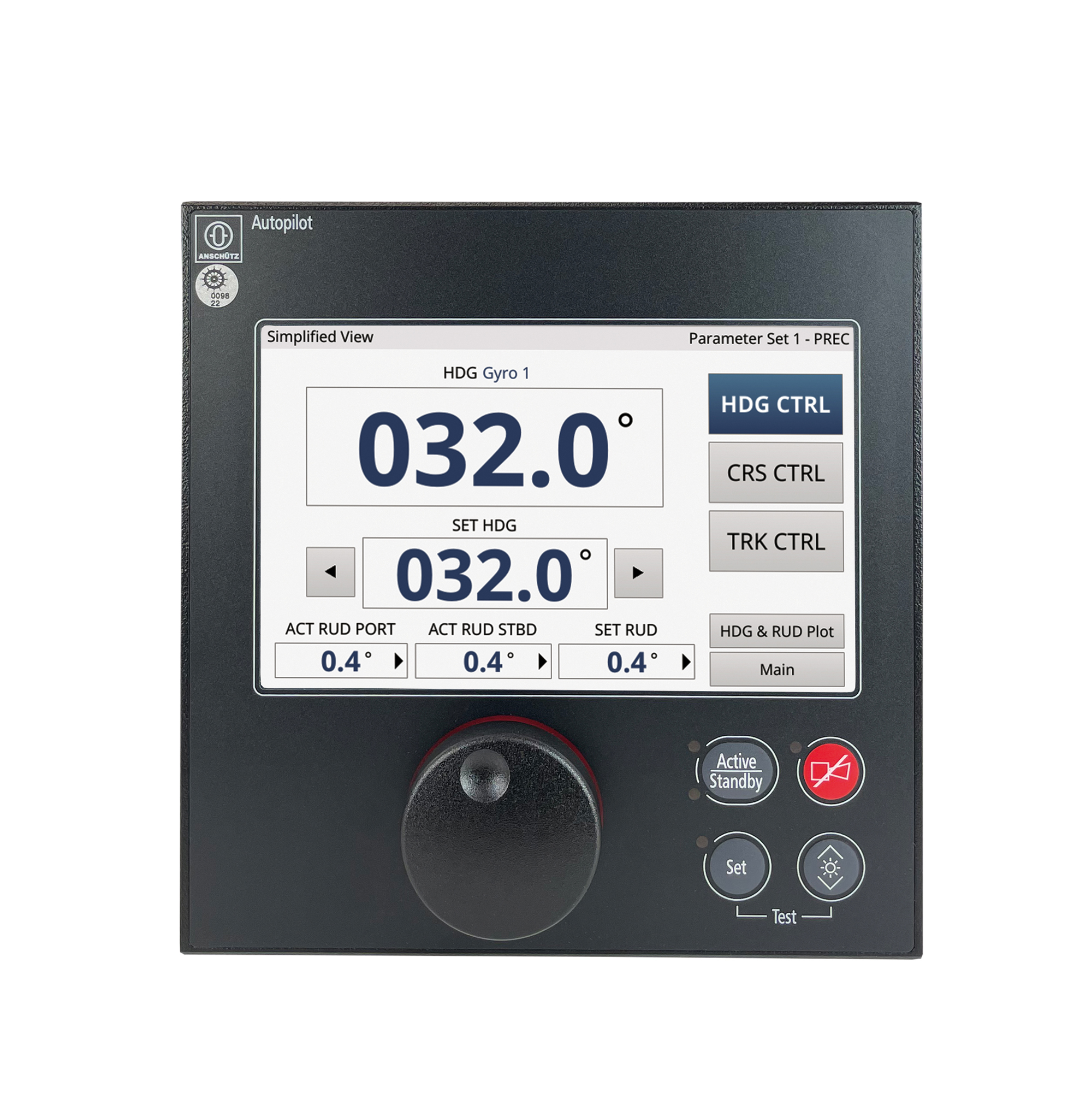

Raytheon Anschütz launched NautoPilot 5000NX, a new autopilot for ships which the company says combines unique algorithms for precise steering performance with a wide range of fuel-saving features. NautoPilot 5000NX displays all navigational information on a 7-inch graphical touchscreen.
“Years of experience in the field has shown that autopilots can also help save significantly on fuel,” said Olav Denker, product manager for autopilots and steering control systems at Anschütz. “We designed numerous features for our NautoPilot 5000NX that help reduce fuel consumption alone or in combination.”
NautoPilot 5000NX’s fuel-saving features include:
- Economy Mode offers permanent fuel savings by reducing rudder activity with the push of a button. The autopilot permanently monitors the actual yawing movements of the vessel, depending on load and sea conditions. Symmetrical movements, as well as movements that cannot be corrected due to the inertial behavior of the ship, are filtered out and not corrected by the autopilot.
- Course Control mode steers the vessel on a course-over-ground line and automatically compensates for drift deviations. The travelled distance is minimized, and smaller rudder angles lead to less loss of speed compared to manual operation.
- The Toe Angle function reduces fuel usage for vessels with dual rudders by optimizing steering characteristics via offsetting the rudders from each other.
- Heading and Rudder Plot provides an instant overview of steering performance and simplifies adjustment of autopilot settings for minimal rudder activity.
Built on new standardized hardware, it offers a modern user interface and supports Ethernet communication that meets IEC 61162-450 standards.
